控制器压力表连接校验台

产品用途：适用于（-0.1-60）MPa任何压力仪表校验连接使用

应用于指针压压力表，压力传感器、差压传感器成品，弹簧管、压力敏感元件的压力校验使用，用于批量校准检定连接扩展使用。

适用对象：

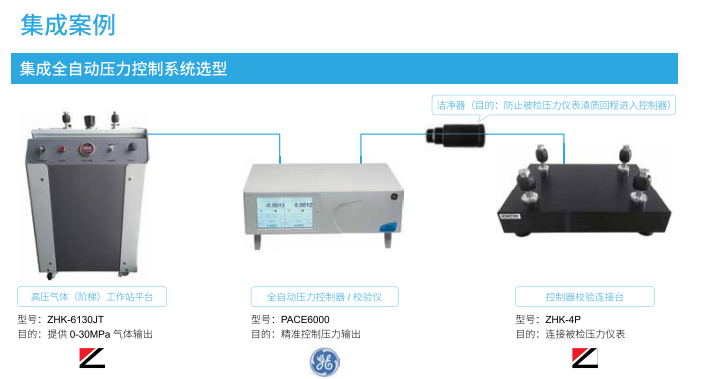

     配合压力工作站平台使用，全自动压力控制器/校验仪搭建量大面广压力校验系统

产品概述：

     配合压力工作站平台使用，全自动压力控制器/校验仪搭建量大面广压力校验系统，同时带有自动排污阀可定期排泄校验台中的残留介质和排泄作用

功能特点：

v 四个表位内螺纹M20X1.5的标准输出口

v 介质：空气或氮气或液体

v 压力范围：（-0.1-60）MPa

v 带泄压阀定期排泄校验台中残留介质

v 工作能力：四表为输出可同时检定4块压力仪表

v 使用条件：配合压力控制器/校验台使用

v 标准接口：内螺纹M20x1.5

v 稳定度：0.01

v 材质选择：铝合金

v 表面处理：黑色喷砂处理

v 结构方式：台式

v 尺寸大小：430mmx312mmx70mm

v 重量（约）：3kg

v 型号：ZHK-4P

本网站有关产品技术指标仅供参考，不足之处请指教！

Controller pressure gauge connection calibration bench

Product application: applicable to the calibration connection of any (- 0.1-60) MPa pressure instrument

It is applied to the pressure calibration of pointer pressure gauge, pressure sensor, differential pressure sensor, spring tube and pressure sensitive element, and is used for batch calibration, verification and connection expansion.

Applicable to:

With the use of the pressure workstation platform, the full-automatic pressure controller / calibrator builds a large-scale and wide-ranging pressure calibration system

Product overview:

With the use of the pressure workstation platform, the full-automatic pressure controller / calibrator builds a pressure calibration system with large quantity and wide range. At the same time, it is equipped with an automatic blowdown valve, which can regularly drain the residual medium and drainage effect in the calibration table

Functional features:

v Four gauge internal thread m20x1 Standard output of 5

v Medium: air or nitrogen or liquid

v Pressure range: (- 0.1-60) MPa

v Regularly drain the residual medium in the calibration bench with pressure relief valve

v Working capacity: four meters are output, and four pressure instruments can be verified at the same time

v Service conditions: used with pressure controller / calibration bench

v Standard interface: internal thread m20x1 five

v Stability: 0.01

v Material selection: aluminum alloy

v Surface treatment: black sand blasting

v Structure: Desktop

v Size: 430mmx312mmx70mm

v weight (about): 2kg

v Model:ZHK-4P
